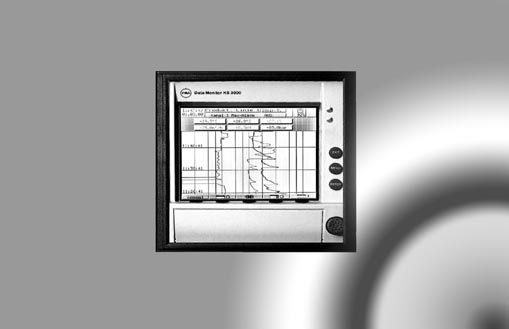

Colour display, screen size 126 mm
-
彩色显示，屏幕尺寸126
mm
-
Sampling rate 250 ms, min. storage cycle 1s
-
采样周期250
ms，最小存储周期1s
-
Usable as point and line recorder
-
可作为点或线性纪录仪
-
Version: 3 or 6 universal inputs
-
型号：3或6通道输入
-
Option: counter/mathematics, dig. inputs and outputs
-
选项：计数器/数学运算，数字输入和输出
Applications
应用
Measuring, storing, visualizing, monitoring, printing and evaluating process data of fast and slow changeable process values:
flow, pressure, level, temperature, pH-value etc
Electronic storage with data transfer via disk, RS 232/485,
modem or Ethernet-modul
No cost for consumables: paper, printing head, pens
Main attributes
主要属性
Vertical display format with selectable channel representation:
Numeric, scaled bargraph or large numeric display
Storage mode: normal, event and time per day
Min- and max-limits for each channel adjustable
Data analysis in the KS 3000 or in a PC (evaluations software)
Structured, electronic archiving with fast data retrieval via PC-software
|
