Colour display, screen size 145 mm
-
彩色显示，屏幕尺寸145 mm
-
Sampling rate 125 ms, min. storage cycle time 125 ms
-
采样周期125
ms，最小存储周期125
ms
-
Usable as point and line recorder
-
可作为点或线性纪录仪
-
Versions: 6 or 12 universal inputs
-
型号：6或12通道输入
-
Option: digitale inputs and outputs, RS 422/485,
PROFIBUS-DP
-
选项：数字输入和输出，RS
422/485，PROFIBUS-DP
Applications
应用
Measuring, storing, visualizing, monitoring, printing and evaluating process data of very fast and slow changeable process values:
flow, pressure, level, temperature, pH-value etc
Electronic storage with data transfer via disk, RS 232/422/485,
modem or Ethernet-modul
With PROFIBUS-DP up to 36 analog inputs, 6 digital inputs
No cost for consumables: paper, printing head, pens
Main attributes
主要属性
6 analog and 3 digital inputs per display group programmable
Up to 6 display groups
Choice of display formats per group: vertical/horizontal diagram, numeric and bargraph display
Storage mode: normal, event and time per day for each display group
Min- and max-limits for each channel
adjustable

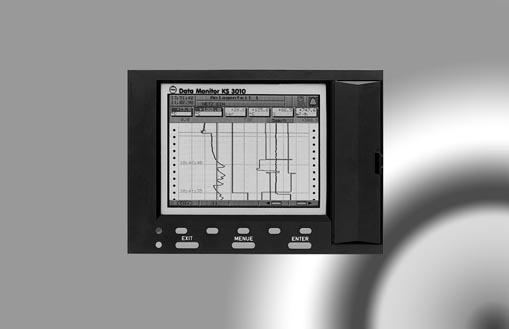

Data analysis in the KS 3010 or in a PC (evaluations software)
Structured, electronic archiving with fast data retrieval via PC-software
|
