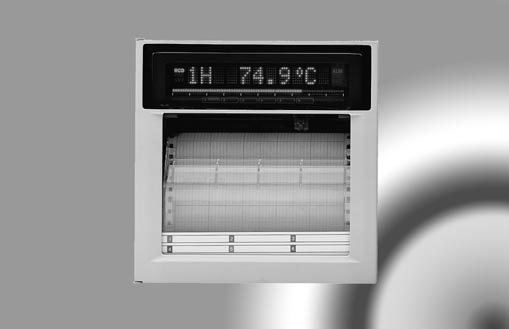

KS 3560

Point recorder

	Data sheet

• Universal inputs dc voltage, dc current, thermocouples, resistance thermometers and contacts
• 通用输入：直流电压，直流电流，热电偶，热电阻和触点


• Alpha-numeric print-out of measured values and messages
• 测量值和信息打印


• Simple, interactive operation and configuration
• 简单的交互式操作和组态


• Option: mathematic functions, plug-in memory card, interface RS 422A, remote control, alarm relays
• 选项：数学计算功能，插入式存储卡，RS 422A 接口，远程控制，报警继电器

Applications 应用
Recording of slow changeable process values, such as pH-values, temperature etc in industrial applications
For mounting in control cabinets, control panels or control desks
Electronic measuring data safety via memory card

Main attributes 主要属性
Compact point recorder for 6 analog channels
Measuring interval 2,5 s
Digital and bargraph display
Recording width 100 mm, folded chart
Alpha-numeric print-out of date, time, chart speed, measured values, text of events, alarms and scale values
Per channel of 4 limit values configurable
Accuracy, class 0,2
