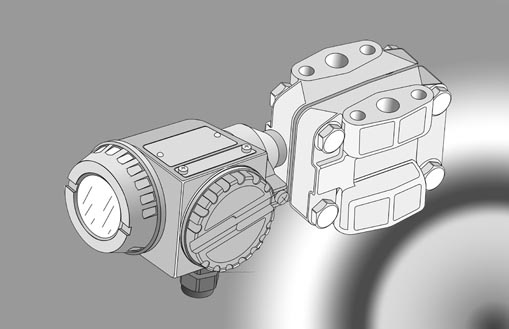

PD5 Transmitter

差压变送器

For Differential pressure

	Datasheet
	中文说明书

• Span from 0.1 mbar up to 3000 mbar
• 测量范围从0.1 mbar到3000 mbar


• Ceramic measuring cell
• 陶瓷测量元件


• Self monitoring
• 自整定功能


• Turn Down 100 : 1
• 量程调整范围100 : 1


• Local display and adjustment
• 就地显示和调整


• Smart function
• 智能型


• Explosion protection
• 防爆保护

Applications 应用
Differential pressure in gases, vapors and liquids
in all areas of chemical and process engineering
Filter monitoring,
Flow measurement, level

Main attributes 主要属性
Conformity error 0,1 %
Max overload, cell dependent up to 140 bar
Process couplings: 1/4" -NPT
Housing: Aluminum alloy, Epoxy coated
Adjustment without applying pressure (with built-in display)
