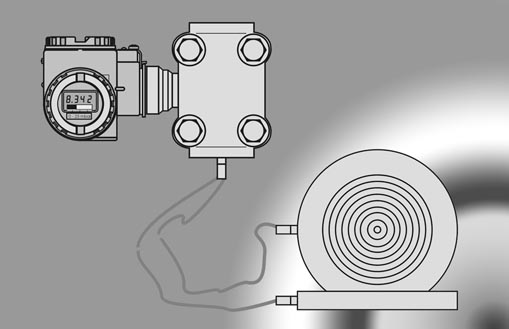

PD6-DM Transmitter

差压变送器

For dP-pressure with remote sealing diaphragm

	Datasheet
	中文说明书

• Span from 1.6 up to 6,000 mbar
• 测量范围从1.6 mbar到6,000 mbar


• With Polysilicone sensor
• 多晶硅测量元件


• Self monitoring
• 自整定功能


• Turn Down 100 : 1
• 量程调整范围100 : 1


• Local display and adjustment
• 就地显示和调整


• Smart function
• 智能型


• Explosion protection
• 防爆保护

Applications 应用
Differential pressure in gases, vapors and liquids
in all areas of chemical and process engineering
at high process temperatures, aggressive or vicous media
Filter monitoring,
Flow measurement, level, density

Main attributes 主要属性
Conformity error 0,1 %
Max overload 140 bar
Vacuum safe
Process couplings: to specification flange or cell type remote seal
Housing: Aluminum alloy, Epoxy coated
Adjustment without applying pressure (with built-in display)
