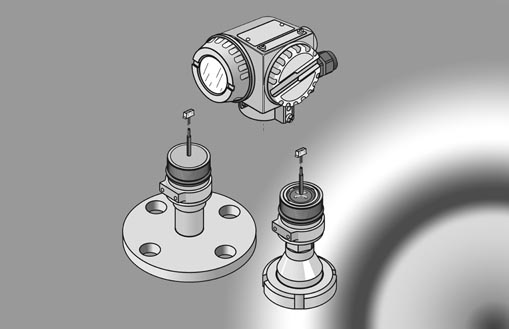

PM4-DM Transmitter

压力变送器

With remote seal

	Datasheet
	中文说明书

• Remote seal for standard as for sterile application
• 远程密封用于恶劣的现场环境


• Ranges from 100 mbar to 400 bar
• 压力范围从100 mbar到400 bar


• Selfmonitoring
• 自整定功能


• Multiple overload
• 耐多倍过载


• Turn Down 100 : 1
• 量程调整范围100 : 1


• Local display and adjustment
• 就地显示和调整


• Smart function
• 智能型


• Explosion protection
• 防爆保护

Applications 应用
Gauge- and absolute pressure in gases, vapors and liquids
in viscous media
For all areas of chemical and process engineering
Food and beverages
Up to + 350 ℃ process temperature continuous

Main attributes 主要属性
Conformity error 0,3 %
Process couplings: sterile, DIN, SMS, Clamp
Flanges to DIN and ANSI ..
Temperature isolator as capillary
Filling liquids selectable
Housing: Aluminum alloy, Epoxy coated
Adjustment without applying pressure (with built-in display)
