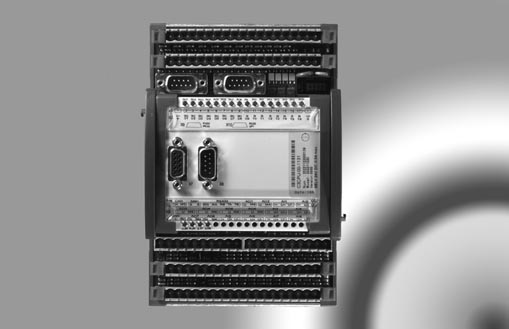

DC 150-x

PLC module with I/O and seriel interfaces

	Datasheet
	中文说明书
	operating manual
	IEC61131-3 engineering-Tool

• Powerful 32 Bit CPU
• 功能强大的32位中央处理器


• 8 digital inputs, also suitable for frequency signals
• 8位输入，可以用作频率信号


• 8 digital in-/outputs, individual configuration
• 8 路数字输入/输出，可分别独立组态


• 8 analog inputs, 8 analog outputs
• 8路模拟量输入，8路模拟量输出


• 2 fieldbusses, max. 3 serial interfaces
• 2条现场总线，最多3个串行接口


• IEC 61131-3 programmable
• IEC 61131-3编程

Applications 应用
plastic machinery
textile machinery
packaging techniques
semiconductor

Main attributes 主要属性
CPU Motorola 68332-25
1 MB CMOS RAM
1 ...9 MB Flash Memory
2 x CANbus, Profibus DP (option)
Gateway functionality Profibus DP / CANopen
Real-time-clock
Status-LED for each I/O channel
