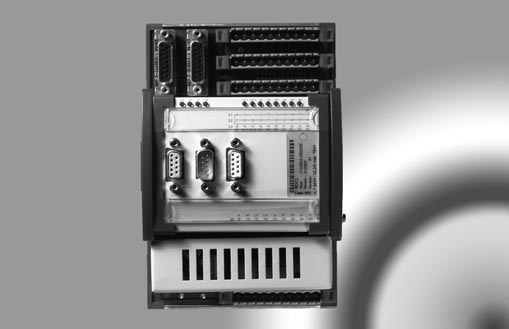

MC 100-x

Intelligent CAN-bus Servo-Controller

further information on request

	Datasheet

• Intelligent dual servocontroller
• 智能双伺服控制器


• CANopen Profil
• CANopen总线


• 1 brushless DC-motor or
• 1 个无刷直流电机或


• 2 brushed DC-Motors
• 2 个有刷直流电机


• Output: 2 x 300 Watts, max. 75V DC
• 输出：2 x 300 Watts, max. 75V DC


• Hall- or resolver interfaces
• 整体或分解接口


• Parameter tuning via engineering-software
• 通过组态软件完成参数自整定

Applications 应用
Handling machines

Main attributes 主要属性
closed loop control of position and rotational speed
point to point commands
interpolate time-/distance profiles
Programmable ramps
Firmware download via CANbus or RS232
6 x DI 24V, 2 x DO 24V / 0,5A,
3 x AI + 10 V
