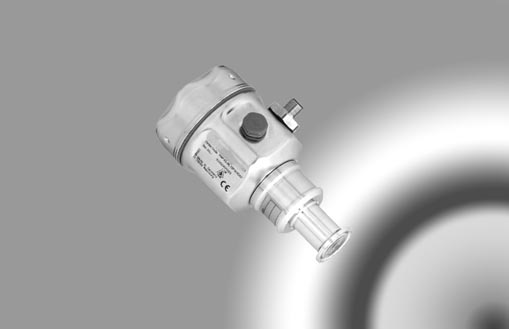

PM 34 Transmitter

压力变送器

Intelligent pressure transmitter, also sterile

	Datasheet
	中文说明书

• With remote seal
• 带远程密封


• Polysilicon measuring cell
• 多晶硅测量元件


• Ranges from 100 mbar to 400 bar
• 压力范围从100 mbar到400 bar

• Multiple overload
• 耐多倍过载


• Turn Down 10 : 1
• 量程调整范围10 : 1


• Local display and adjustment
• 就地显示和调整


• Analogue, smart or Bus function
• 模拟、智能和总线功能


• Explosion protection
• 防爆保护

Applications 应用
Gauge- and absolute pressure in gases, vapor and liquids
in viscous media
For all areas of chemical and process engineering
Food and beverages
Up to + 125 ℃ process temperature continuous

Main attributes 主要属性
Conformity error 0,3 %
Process couplings: Screw-in, steril and flange
Filling liquids selectable
Housing: stainless steel
Three electronic versions selectable
Analogue version: fast
Smart. HART protocol
Bus: profibus PA
Wide selection of electrical connections via cable gland, conduits, fixed cable as also plug
