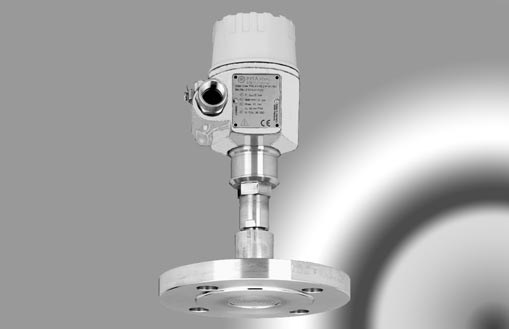

PM 36 Transmitter

压力变送器

Intelligent pressure transmitter

	Datasheet
	中文说明书

• Remote seal for process application
• 远程密封用于恶劣的现场环境


• Polysilicon measuring cell
• 多晶硅测量元件


• Ranges from 100 mbar to 400 bar
• 压力范围从100 mbar到400 bar

• Multiple overload
• 耐多倍过载


• Turn Down 10 : 1
• 量程调整范围10 : 1


• Local display and adjustment
• 就地显示和调整


• Analogue, smart or Bus function
• 模拟、智能和总线功能


• Explosion protection
• 防爆保护

Applications 应用

Gauge- and absolute pressure in gases, vapor and liquids,
in viscous media
For all areas of chemical and process engineering
Up to + 350 ℃ process temperature continuous

Main attributes 主要属性
Conformity error 0,3 %
Process couplings: flange, screw-in ..
Temperature isolator as capillary
Filling liquids selectable
Housing: Aluminum alloy, Epoxy coated
Three electronic versions selectable
Analogue version: fast
Smart. HART protocol
Bus: profibus PA
Wide selection of electrical connections via cable gland, conduits, fixed cable as also plug
