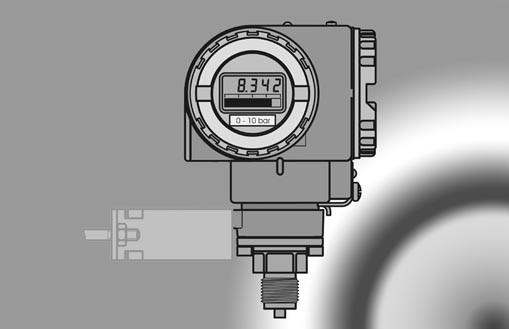

PM 4 Transmitter

压力变送器

High precise pressure transmitter

	datasheet
	中文说明书

• Span from 1 mbar up to 400 bar
• 压力范围从1 mbar到400 bar

• Ceramic or Polysilicone measuring cell
• 陶瓷或多晶硅测量元件


• Selfmonitoring
• 自整定功能


• Multiple overload
• 耐多倍过载


• Turn Down 100 : 1
• 量程调整范围100 : 1


• Local display and adjustment
• 就地显示和调整

• Smart function
• 智能型


• Explosion protection
• 防爆保护

Applications 应用
Gauge- and absolute pressure in gases, vapors and liquids
in all areas of chemical and process engineering
Up to + 85 ℃ process temperature continuous

Main attributes 主要属性
Conformity error 0,1 %
Process couplings: G1/4f, G1/2A, M20 x1,5;, 1/4" & 1/2"-NPT
Housing: Aluminum alloy, Epoxy coated
Adjustment without applying pressure (with built-in display)
