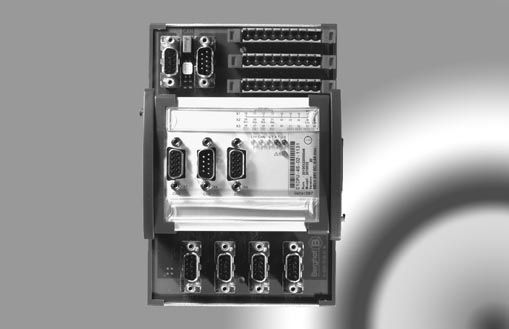

PU 103-x

PLC module with 4 seriel interfaces

	Datasheet
	中文说明书
	IEC61131-3 engineering-Tool

• Powerful 32 Bit CPU
• 功能强大的32位中央处理器


• 4 encoder inputs
• 4 路编码输入


• 4 open-collector outputs
• 4路集电极开路输出


• 3 CANopen busses
• 3个CANopen总线接口


• 4 seriel interfaces + debug interface
• 4 个串行接口+调试接口


• IEC 61131-3 programmable
• IEC 61131-3编程

Applications 应用
plastic machinery
textile machinery
packaging techniques
semiconductor

Main attributes 主要属性
CPU Motorola 68332-25
1,25 MB CMOS RAM
2 MB Flash Memory
4 diff. IN ?7 V (RS422) for 2 encoder 500 kHz
4 fast outputs 5...24 V / max. 25 mA / max. 150kHz, open collector, short circuit protected
E-Bus for I/O extension
Status-LED for each I/O channel
