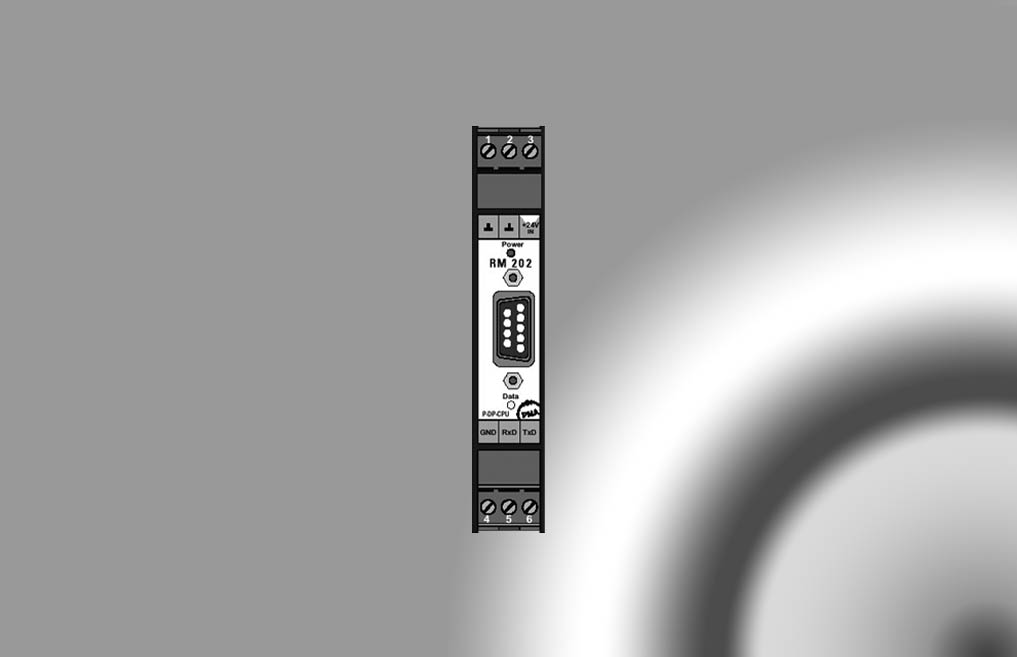

RM 202

Bus coupler PROFIBUS-DP

	Data sheet
	中文说明书
	Functional description

• Central coupler module with PROFIBUS-DP interface
• PROFIBUS-DP总线接口耦合器模块


• Baudrate up to 12 MBd, configurable
• 波特率最大12 MBd，可组态


• connectable up to 72 I/O points
• 可以连接最多72个输入/输出点

Applications 应用
Decentralized input/output modules RM 200
Modular system

Main attributes 主要属性
PROFIBUS-DP slave acc. To EN 50170
Sub-D connector
baudrates 9.6 ... 12000 kBit/s
addresses 1... 126
LED indicators: 3x status
screw-/plug-in terminals
plug-in module
