Heating Current Transducers

电流互感器

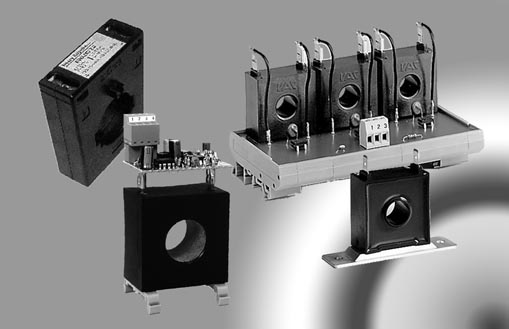

Various current transducers for KS800, KS40 ...

	operating note Typ A (50 A)
	operating note Typ B (3-phase)
	data sheet Typ C (75 A)

• Typ A: passive transducer 50 A
• 被动式互感器50 A

• Typ B: passive 3-phase transducer 3 x 15A or max. 3 x 45 A
• 被动式三相互感器3 x 15A或max. 3 x 45

• Typ C: passive transducer 75 A
• 被动式互感器75 A

• Typ D: (HC200-A): active transducer 75 A
• 主动式互感器 75 A

• Typ F: passive transducer 150 A (on request)
• 被动式互感器150 A

Applications 应用
Heating current monitoring for KS800, KS40 ...
KS800: only one transducer necessary for monitoring 8 loops

Main attributes 主要属性
Typ D (HC200-A):
also possible: measurement of low currents > 0,5 A
high precision (better than 2 %) for currents > 1 A
parallel wiring of several current transmitters for 3-phase monitoring possible
