VARIO BK ETH

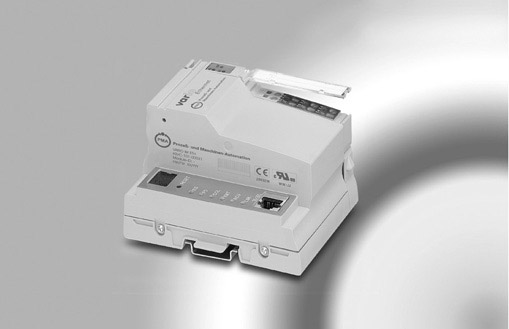

ETHERNET bus coupler

	Data sheet
	中文说明书

• Central coupler module with Ethernet TCP/IP interface
• 中央耦合器，带TCP/IP接口


• Baudrate up to 100 MBd, configurable
• 波特率最高达100 MBd，可组态


• 10/100 BASE-T(X)


• Connectable up to 63 VARIO modules
• 可以连接最多 63个VARIO模块


• Integated 24V-DC-power supply for total VARIO-System
• 集合24V-DC电源用于VARIO系统供电

Applications 应用
Head of the VARIO-system
Head of the modular closed-loop-control-system KS VARIO
For process automation, machinery automation, installations, factory automation

Main attributes 主要属性
ETHERNET: Endgerät, conformable IEEE 802.3
Protocol: Modbus/TCP, TCP/UDP, SNMP, BootP
IP-parameter setting via BootP oder SNMP
RJ 45-connector
LED indicators: 9 x status and diagnostics
Incoming 24V-DC supply for segment and main-circuit
Spring clamp-/plug-in terminals
