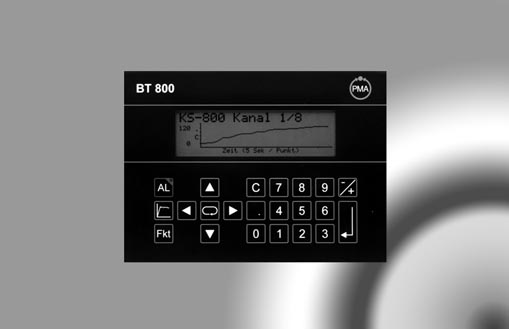

BT 800

Compact CAN operating Terminal

	Datasheet BT800
	Operating notes BT800
	KS800
	Touch-HMI

• Operating Terminal for KS800 multi-loop controller
• 操作终端用于KS800多回路控制器


• Connection of max. 5 KS800 via CANopen bus interface
• 最多通过CANopen总线接口连接5个KS800


• Backlit LC display with text and graphics function
• 黑色液晶屏，具有文本和图形显示功能


• Software update in Flash EPROM
• 在快速EPROM中实现软件更新


• Customer specific operating displays
• 用户定义操作显示

Applications 应用
plastic machinery
Retrofitting
packaging techniques
machinery operation

Main attributes 主要属性
Powerful microcontroller architecture
128kByte program flash memory
Compact construction with foil covered Keyboard
Front protection class IP65
Software download via serial line
Menu-guided operating for max. 5 KS800
Operating pages for Controller operation, parameters,
configuration data, Alarm page
Process values will be logged graphically as trend curves
