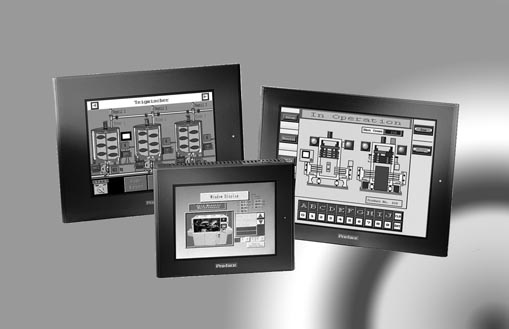

GP 2000

Touch operating terminals

	BT800
	IQT Touch

• Touch operator Panel with easy engineering possibilities
• 具有方便人机界面的触摸屏


• Display diagonal 5,7 inch
• 显示屏幕 5,7 英寸


• Powerful hardware
• 功能强大的硬件


• Ethernet network interface
• 以太网接口


• A big number of available communication drivers
• 大量通讯驱动软件

Applications 应用
Operating terminal for PLCs
Operating terminal for building automation
Decentralized handling of temperature controllers (ModBus)

Main attributes 主要属性
Powerful 100MHz RISC CPU
up to 4 Mbyte Flash memory for user applications
Robust aluminium housing for harsh environment
Interfaces: RS232/422 for dirct PLC connection
Ethernet for connection to the process (MODbus//TCP)
or for the connection to a host computer
Fieldbus modules
CF-card slot
Windows based Engineering tool
Application building with 'drag and drop'
Many pre-defined elements
Windows software for ethernet comnection
