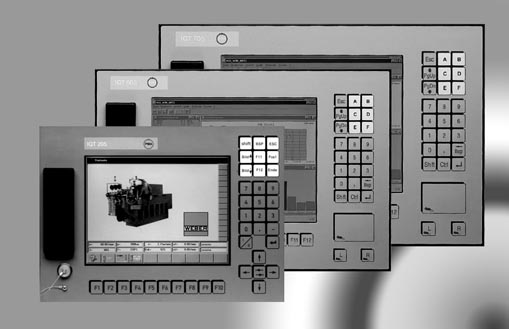

IQT 205/605/705

Industrial PC compatible Operating-Terminals

	Datasheet IQT205
	Datasheet IQT605
	Datasheet IQT705
	BT 800
	IQT touch

• Operating Terminal for KS800 multi-loop controller
• 作为多回路控制器KS800操作终端


• Connection of max. 5 KS800 via CANopen bus interface
• 通过总线接口最多连接5台KS800控制器


• Backlit LC display with text and graphics function
• 具有文本和图形功能的黑色液晶显示


• Software update in Flash EPROM
• 在快速EPROM中实现软件更新


• Customer specific operating displays
• 用户定义操作显示

Applications 应用
machinery operating terminal
plant operation terminal
data aquisition
Quality data aqusition
PC based automation

Main attributes 主要属性
Singleboard-CPU with embedded Pentium 266, fanless
up to 256 MByte RAM
Color-TFT-Display, 10,4" .. 15" diagonale
Foil covered keyboard with insertable label for Logo
Integrated Touchpad (IQT 605/705)
Floppydisc drive
Harddisc
Interfaces:
1 x RS232, 1 x RS232/422/485, LPT
Ethernet 10/100 BaseT
VGA, ext. keyboard
Sockets for up to 3 x PC104 orr 2 x 16 Bit ISA
Stainless steel housing
Front protection class IP65 (with Floppydrive to the backside)
