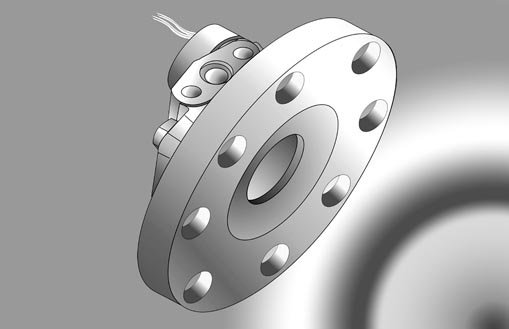

L5 Level transmitter

液位变送器

Level measurement with ceramic measuring cell

	Datasheet
	中文说明书

• Span from 1 mbar up to 3000 mbar
• 测量范围从1 mbar到3000 mbar


• Self monitoring
• 自整定功能


• Turn Down 100 : 1
• 量程调整范围100 : 1


• Local display and adjustment
• 就地显示和调整


• Smart function
• 智能型


• Explosion protection
• 防爆保护

Applications 应用
Level measurement especially in aggressive and abrasive media

Main attributes 主要属性
Corrosion- as abrasion resistant measuring cell
Flange made from stainless steel
also possible coating with ECTFE for chemical resistivity
Conformity error 0,1 %
Process couplings: DN 80, 1/4" -NPT
Housing: Aluminum alloy, Epoxy coated
Adjustment without applying pressure (with built-in display)
