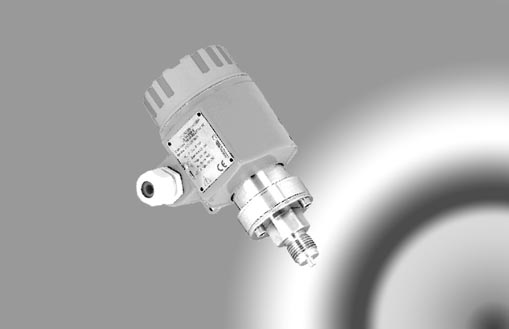

PM 31 Transmitter

压力变送器

Intelligent Pressure Transmitter

	Datasheet
	中文说明书

• Ceramic measuring cell
• 陶瓷测量元件


• Ranges from 10 mbar to 40 bar
• 量程从10 mbar到40 bar


• Multiple overload
• 耐多倍过载


• Turn Down 10 : 1
• 量程调整范围10 : 1


• Local display and adjustment
• 就地显示和调整


• Analogue, smart or Bus function
• 模拟、智能和总线功能


• Explosion protection
• 防爆保护

Applications 应用
Gauge- and absolute pressure in gases, vapour and liquids
in all areas of chemical and process engineering
Up to + 100 ℃ process temperature continuous

Main attributes 主要属性
Conformity error 0,2 %
Process couplings: G1/4, G1/2A, M20 x1,5, 1/4" & 1/2"-NPT
Housing: Aluminum alloy, Epoxy coated
Three electronic versions selectable
Analogue version: fast
Smart. HART protocol
Bus: profibus PA
Wide selection of electrical connections via cable gland, conduits, fixed cable as also plug
